Part №: —

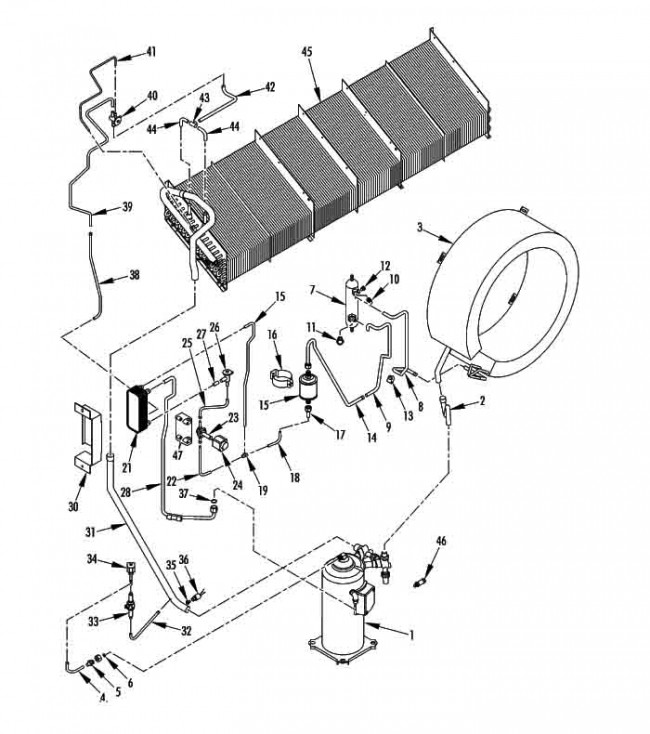

Оригинальное название: REFRIGERATION COMPONENTS (SERVICE VALVES)
Количество: 1
Детали
| На схеме | Part № | Название | Кол-во | |
|---|---|---|---|---|
| 1 | 102-795 | COMPRESSOR - scroll (see 180E1) (COMPRESSOR - scroll (see 180E1)) | 1 | заказать |
| - | 92-2229 | SPACER - compressor (SPACER - compressor) | 1 | заказать |
| 2 | 61-2477 | TUBE - valve to coil (TUBE - valve to coil) | 1 | заказать |
| 3 | 60-285 | COIL - condenser (COIL - condenser) | 1 | заказать |
| 4 | 61-2467 | TUBE - valve to coil (TUBE - valve to coil) | 1 | заказать |
| 5 | 61-2162 | ADAPTER - compressor (ADAPTER - compressor) | 1 | заказать |
| 6 | 33-3912 | SEAL - teflon fiber (SEAL - teflon fiber) | 1 | заказать |
| 7 | 67-1991 | TANK - receiver (TANK - receiver) | 1 | заказать |
| 8 | 61-2238 | • TUBE - receiver to dehydrator (• TUBE - receiver to dehydrator) | 1 | заказать |
| 9 | 61-2569 | • TUBE - receiver to condenser (• TUBE - receiver to condenser) | 1 | заказать |
| 10 | 66-7812 | CAP - fitting (CAP - fitting) | 1 | заказать |
| 11 | 66-8811 | INDICATOR - liquid (INDICATOR - liquid) | 1 | заказать |
| - | 33-3007 | O-RING (O-RING) | 1 | заказать |
| 12 | 506-364 | PLUG - fusible (PLUG - fusible) | 1 | заказать |
| - | 51-273 | NUT - receiver tank (NUT - receiver tank) | 2 | заказать |
| - | 55-9027 | WASHER - insulating (WASHER - insulating) | 4 | заказать |
| 13 | 55-6730 | CLAMP - tube (CLAMP - tube) | 2 | заказать |
| - | 51-1421 | SCREW - clamp (SCREW - clamp) | 1 | заказать |
| - | 51-1425 | NUT (NUT) | 1 | заказать |
| 14 | 61-3508 | TUBE - receiver to dehydrator (TUBE - receiver to dehydrator) | 1 | заказать |
| - | 55-302 | NUT - adapter (NUT - adapter) | 1 | заказать |
| 15 | 61-786 | DEHYDRATOR (DEHYDRATOR) | 1 | заказать |
| 16 | 51-1871 | CLAMP - dehydrator (CLAMP - dehydrator) | 1 | заказать |
| - | 51-1442 | SCREW - clamp (SCREW - clamp) | 1 | заказать |
| - | 51-1441 | FLATWASHER - clamp (FLATWASHER - clamp) | 1 | заказать |
| - | 51-1425 | NUT - clamp (NUT - clamp) | 1 | заказать |
| - | 55-9054 | WASHER - insulating (WASHER - insulating) | 1 | заказать |
| - | 51-1442 | SCREW - dehydrator (SCREW - dehydrator) | 1 | заказать |
| - | 51-1464 | FLATWASHER - dehydrator (FLATWASHER - dehydrator) | 2 | заказать |
| 17 | 61-3506 | TUBE - filter (TUBE - filter) | 1 | заказать |
| - | 55-302 | NUT - adapter (NUT - adapter) | 1 | заказать |
| 18 | 61-3503 | TUBE - filter to tee (TUBE - filter to tee) | 1 | заказать |
| 19 | 55-3251 | TEE (TEE) | 1 | заказать |
| 20 | 61-2471 | TUBE - tee to exchanger (TUBE - tee to exchanger) | 1 | заказать |
| 21 | 67-1889 | HEAT EXCHANGER - economizer (HEAT EXCHANGER - economizer) | 1 | заказать |
| - | 92-3547 | INSULATION - heat exchanger (INSULATION - heat exchanger) | 1 | заказать |
| 22 | 61-2472 | TUBE - tee to valve (TUBE - tee to valve) | 1 | заказать |
| - | 91-758 | CLAMP - tube (CLAMP - tube) | 1 | заказать |
| - | 51-1442 | SCREW - clamp (SCREW - clamp) | 1 | заказать |
| - | 51-1441 | FLATWASHER (FLATWASHER) | 2 | заказать |
| - | 55-8915 | SPACER (SPACER) | 1 | заказать |
| 23 | 61-2470 | VALVE - solenoid (vapor injection) (VALVE - solenoid (vapor injection)) | 1 | заказать |
| 24 | 41-5460 | COIL - valve (COIL - valve) | 1 | заказать |
| - | 504-919 | • COIL (• COIL) | 1 | заказать |
| 25 | 61-2469 | TUBE - valve to expansion (TUBE - valve to expansion) | 1 | заказать |
| 26 | 66-9906 | VALVE - expansion (economizer) (VALVE - expansion (economizer)) | 1 | заказать |
| 27 | 61-1847 | TUBE - expansion valve to exchanger (TUBE - expansion valve to exchanger) | 1 | заказать |
| 28 | 61-2474 | TUBE - liquid injection (TUBE - liquid injection) | 1 | заказать |
| - | 55-8951 | SHOULDER (SHOULDER) | 1 | заказать |
| - | 55-8950 | NUT - o-ring seal (NUT - o-ring seal) | 1 | заказать |
| - | 33-4499 | INSULATION - tube (cut to 24.5 in lg) (INSULATION - tube (cut to 24.5 in lg)) | A/R | заказать |
| - | 33-4499 | INSULATION - tube (cut to 19.0 in lg) (INSULATION - tube (cut to 19.0 in lg)) | A/R | заказать |
| - | 91-1800 | CLAMP - tube (CLAMP - tube) | 2 | заказать |
| - | 51-1442 | SCREW - clamp (SCREW - clamp) | 1 | заказать |
| - | 51-1425 | NUT (NUT) | 1 | заказать |
| 29 | 61-2476 | TUBE - tx bulb (TUBE - tx bulb) | 1 | заказать |
| 30 | 92-3391 | BRACKET - heat exchanger (BRACKET - heat exchanger) | 1 | заказать |
| - | 92-3550 | INSULATION - mylar (INSULATION - mylar) | 1 | заказать |
| 31 | 61-3502 | TUBE - suction (TUBE - suction) | 1 | заказать |
| - | 33-4500 | INSULATION - tube (42.1 in lg) (INSULATION - tube (42.1 in lg)) | A/R | заказать |
| 32 | 61-2466 | TUBE - suction to ball valve (TUBE - suction to ball valve) | 1 | заказать |
| 33 | 61-2465 | VALVE - ball (VALVE - ball) | 1 | заказать |
| 34 | 61-2057 | VALVE (PWM) (VALVE (PWM)) | 1 | заказать |
| - | 41-7937 | • COIL (only) (• COIL (only)) | 1 | заказать |
| 35 | 66-6607 | FITTING - low side (FITTING - low side) | 1 | заказать |
| - | 66-7183 | • CAP - charge port (blue) (• CAP - charge port (blue)) | 1 | заказать |
| - | 66-8054 | ADAPTER (ADAPTER) | 1 | заказать |
| 36 | 41-4473 | SWITCH - lpco (SWITCH - lpco) | 1 | заказать |
| 37 | 33-566 | O-RING (O-RING) | 1 | заказать |
| 38 | 61-2468 | TUBE - heat exchanger to evaporator (TUBE - heat exchanger to evaporator) | 1 | заказать |
| - | 33 4501 | INSULATION - tube (14.1 in lg) (INSULATION - tube (14.1 in lg)) | A/R | заказать |
| 39 | 61-2050 | TUBE - exchanger to coil (#2) (TUBE - exchanger to coil (#2)) | 1 | заказать |
| 40 | 61-443 | VALVE - expansion (VALVE - expansion) | 1 | заказать |
| 41 | 61-2048 | TUBE - equalizer (TUBE - equalizer) | 1 | заказать |
| 42 | 61-2049 | TUBE - expansion valve to tee (TUBE - expansion valve to tee) | 1 | заказать |
| 43 | 55-2296 | TEE (TEE) | 1 | заказать |
| 44 | 61-2051 | TUBE - tee to distributor (TUBE - tee to distributor) | 1 | заказать |
| 45 | 67-1923 | COIL - evaporator (14.7/374 wide, see 235E9) (COIL - evaporator (14.7/374 wide, see 235E9)) | 1 | заказать |
| 46 | 41-4004 | SWITCH - hpco (SWITCH - hpco) | 1 | заказать |
| 47 | 55-6388 | CLAMP - tube (3/8) (CLAMP - tube (3/8)) | 3 | заказать |
| - | 91-759 | CLAMP - tube (1/2) (CLAMP - tube (1/2)) | 1 | заказать |
| - | 55-8915 | SPACER (18 mm) (SPACER (18 mm)) | 4 | заказать |
| - | 55-7029 | SCREW - clamp (65 mm) (SCREW - clamp (65 mm)) | 2 | заказать |
| - | 55-8993 | SCREW - clamp (50 mm) (SCREW - clamp (50 mm)) | 2 | заказать |
| - | 55-9027 | WASHER (nylon) (WASHER (nylon)) | 2 | заказать |
