Part №: —

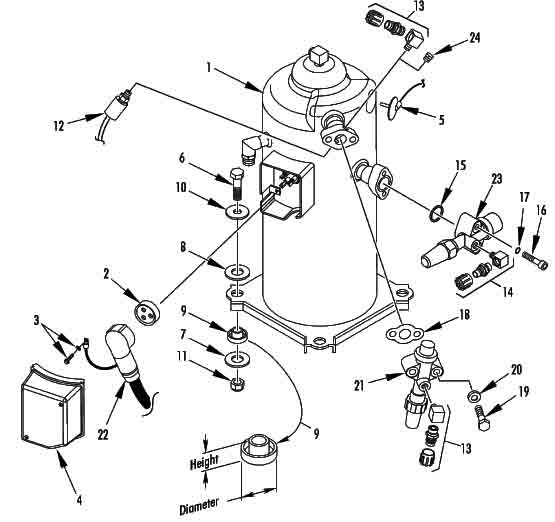

Оригинальное название: COMPRESSOR GROUP (SERVICE VALVES)
Количество: 1
Детали
| На схеме | Part № | Название | Кол-во | |
|---|---|---|---|---|
| 1 | 102-795 | COMPRESSOR - scroll (COMPRESSOR - scroll) | 1 | заказать |
| - | 203-516 | OIL - compressor (OIL - compressor) | A/R | заказать |
| - | 40-779 | KIT - gasket & grease (KIT - gasket & grease) | 1 | заказать |
| 2 | 33-2951 | • GASKET - power connector (• GASKET - power connector) | 1 | заказать |
| - | 33-2979 | • SEALER - silicone grease pack (• SEALER - silicone grease pack) | 1 | заказать |
| 3 | 55-8994 | • SCREW - ground (• SCREW - ground) | 1 | заказать |
| - | 55-8995 | • WASHER - ground (• WASHER - ground) | 1 | заказать |
| 4 | 91-9021 | • COVER - terminal box (• COVER - terminal box) | 1 | заказать |
| 5 | 40-776 | • KIT - thermistor (• KIT - thermistor) | 1 | заказать |
| 6 | 51-1433 | SCREW - compressor (SCREW - compressor) | 4 | заказать |
| 7 | 51-1435 | FLATWASHER (12 mm) (FLATWASHER (12 mm)) | 4 | заказать |
| 8 | 55-9012 | WASHER - vibration damper (WASHER - vibration damper) | 4 | заказать |
| 9 | 55-9013 | SPACER (before 1/03, height - 16.3, dia 31.7) (SPACER (before 1/03, height - 16.3, dia 31.7)) | 4 | заказать |
| - | 51-1432 | SPACER (1/03 - 3/10, height - 17.4, dia 34.3) (SPACER (1/03 - 3/10, height - 17.4, dia 34.3)) | 4 | заказать |
| - | 51-2033 | SPACER (3/10 & after, height - 17.9, dia 34.3) (SPACER (3/10 & after, height - 17.9, dia 34.3)) | 4 | заказать |
| 10 | 51-1436 | FLATWASHER (13 mm) (FLATWASHER (13 mm)) | 4 | заказать |
| 11 | 51-1434 | NUT (NUT) | 4 | заказать |
| 12 | 41-4004 | SWITCH - hpco (SWITCH - hpco) | 1 | заказать |
| - | 203-393 | SEALER - thread (red) (SEALER - thread (red)) | A/R | заказать |
| 13 | 66-7812 | ADAPTER - high side (ADAPTER - high side) | 1 | заказать |
| - | 66-6610 | FITTING - highside (FITTING - highside) | 1 | заказать |
| - | 66-7182 | • CAP - fitting (• CAP - fitting) | 1 | заказать |
| - | 203-393 | SEALER - thread (red) (SEALER - thread (red)) | A/R | заказать |
| 14 | 66-8054 | ELBOW - low side (ELBOW - low side) | 1 | заказать |
| - | 66-6607 | FITTING - low side (FITTING - low side) | 1 | заказать |
| - | 66-7183 | • CAP - fitting (• CAP - fitting) | 1 | заказать |
| 15 | 33-727 | O-RING - suction (O-RING - suction) | 1 | заказать |
| 16 | 51-1438 | SCREW - flange (SCREW - flange) | 2 | заказать |
| 17 | 51-1429 | LOCKWASHER (LOCKWASHER) | 2 | заказать |
| 18 | 33-2805 | GASKET - flange (GASKET - flange) | 1 | заказать |
| 19 | 51-1437 | SCREW - discharge valve (SCREW - discharge valve) | 2 | заказать |
| 20 | 51-358 | WASHER - sealing (WASHER - sealing) | 2 | заказать |
| 21 | 61-2119 | VALVE - discharge (VALVE - discharge) | 1 | заказать |
| 22 | 40-782 | KIT - power cord (KIT - power cord) | 1 | заказать |
| 23 | 61-2118 | VALVE - suction (VALVE - suction) | 1 | заказать |
| - | 66-9842 | VALVE (VALVE) | 1 | заказать |
| 24 | 55-3364 | PLUG (PLUG) | 1 | заказать |
