Part №: —
Оригинальное название: CONTROL BOX DOOR (MP-4000)
Количество: 1
Детали

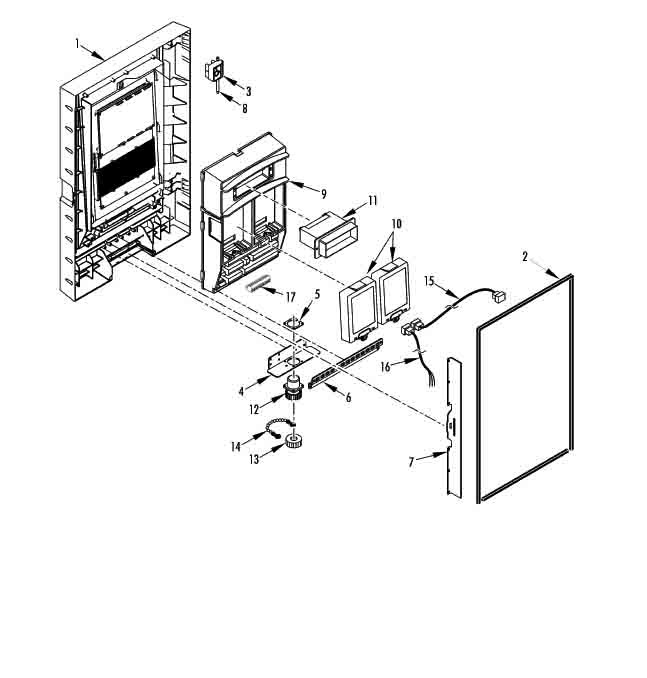

| На схеме | Part № | Название | Кол-во | |
|---|---|---|---|---|
| 1 | 41-8723 | DOOR - front (MP-4000, includes keypad and VGA display) (DOOR - front (MP-4000, includes keypad and VGA display)) | 1 | заказать |
| 2 | 33-4502 | GASKET - door (GASKET - door) | 1 | заказать |
| 3 | 51-1844 | HINGE - top (HINGE - top) | 2 | заказать |
| - | 51-1874 | SCREW (SCREW) | 6 | заказать |
| 4 | 92-7636 | BRACKET - connector (BRACKET - connector) | 1 | заказать |
| 5 | 92-7637 | BRACKET - washer deutsch plug (BRACKET - washer deutsch plug) | 1 | заказать |
| - | 51-1875 | RIVET (3 X 10 mm) (RIVET (3 X 10 mm)) | 4 | заказать |
| - | 51-1876 | RIVET (3 X 8 mm) (RIVET (3 X 8 mm)) | 1 | заказать |
| 6 | 92-7638 | BRACKET - cable (BRACKET - cable) | 1 | заказать |
| 7 | 92-7559 | BRACKET - lock reinforcement (BRACKET - lock reinforcement) | 1 | заказать |
| 8 | 51-1843 | PIN - hinge (PIN - hinge) | 2 | заказать |
| 9 | 45-2295 | CONTROLLER (MP-4000) (CONTROLLER (MP-4000)) | 1 | заказать |
| 10 | 41-8718 | MODULE - blanking (MODULE - blanking) | 2 | заказать |
| 11 | 41-8717 | MODULE - battery (MODULE - battery) | 1 | заказать |
| 12 | 41-8724 | CABLE - retriever (CABLE - retriever) | 1 | заказать |
| 13 | 41-2406 | CAP - dust (CAP - dust) | 1 | заказать |
| 14 | 92-8690 | STRAP - cap (STRAP - cap) | 1 | заказать |
| 15 | 41-8716 | CABLE - serial (CM-4000 to PM-4000) (CABLE - serial (CM-4000 to PM-4000)) | 1 | заказать |
| 16 | 41-8715 | CABLE - serial (cargo) (CABLE - serial (cargo)) | 1 | заказать |
| 17 | 41-9974 | CONNECTOR - 8-pin (CONNECTOR - 8-pin) | 1 | заказать |
| - | 41-9975 | CONNECTOR - 9-pin (CONNECTOR - 9-pin) | 1 | заказать |
| - | 41-9976 | CONNECTOR - 4-pin (CONNECTOR - 4-pin) | 1 | заказать |
| - | 41-9977 | CONNECTOR - 6-pin (CONNECTOR - 6-pin) | 1 | заказать |
| - | 41-9978 | CONNECTOR - 17-pin (CONNECTOR - 17-pin) | 1 | заказать |
