Part №: —

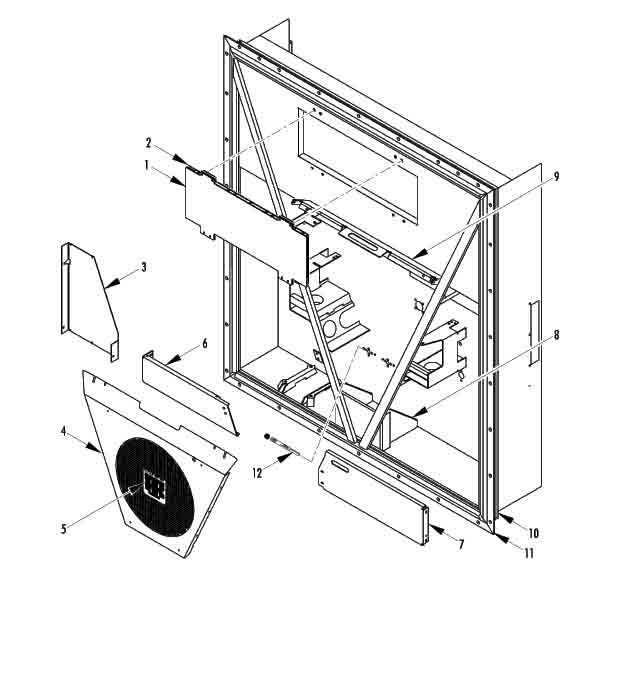

Оригинальное название: CONDENSER COMPONENTS
Количество: 1
Детали
| На схеме | Part № | Название | Кол-во | |
|---|---|---|---|---|
| 1 | 98-7691 | DOOR - evaporator (bolt-on door) (DOOR - evaporator (bolt-on door)) | 1 | заказать |
| - | 51-1460 | SCREW - door (M8, TIR seal) (SCREW - door (M8, TIR seal)) | 4 | заказать |
| - | 51-1430 | FLATWASHER (M8) (FLATWASHER (M8)) | 4 | заказать |
| - | 55-9541 | WASHER (M8, nylon) (WASHER (M8, nylon)) | 4 | заказать |
| - | 51-1459 | SCREW - door (M6, TIR seal) (SCREW - door (M6, TIR seal)) | 4 | заказать |
| - | 51-1464 | FLATWASHER (M6) (FLATWASHER (M6)) | 4 | заказать |
| - | 55-9054 | WASHER (M6, nylon) (WASHER (M6, nylon)) | 4 | заказать |
| 2 | 33-3969 | GASKET - evaporator door (GASKET - evaporator door) | 1 | заказать |
| 3 | 91-8728 | COVER (instead of thermometer) (COVER (instead of thermometer)) | 1 | заказать |
| - | 51-1467 | SCREW - cover (SCREW - cover) | 3 | заказать |
| - | 51-1444 | FLATWASHER (FLATWASHER) | 3 | заказать |
| 4 | 98-5925 | GRILLE - condenser (see 189C4) (GRILLE - condenser (see 189C4)) | 1 | заказать |
| - | 33-3043 | GASKET - rubber extrusion (GASKET - rubber extrusion) | 1 | заказать |
| - | 51-1445 | SCREW - grille (SCREW - grille) | 4 | заказать |
| - | 51-1464 | FLATWASHER (FLATWASHER) | 4 | заказать |
| - | 55-9054 | WASHER (nylon) (WASHER (nylon)) | 4 | заказать |
| 5 | 91-8475 | NAMEPLATE - TK (NAMEPLATE - TK) | 1 | заказать |
| 6 | 91-8474 | PLATE - guard (PLATE - guard) | 1 | заказать |
| - | 55-7341 | SCREW - plate (SCREW - plate) | 3 | заказать |
| - | 51-1464 | FLATWASHER (FLATWASHER) | 6 | заказать |
| - | 55-9054 | WASHER - insulation (WASHER - insulation) | 6 | заказать |
| 7 | 98-6560 | PLATE - cable storage (units w/o water cooled cond) (PLATE - cable storage (units w/o water cooled cond)) | 1 | заказать |
| - | 51-1425 | NUT (NUT) | 2 | заказать |
| - | 55-9054 | WASHER (nylon) (WASHER (nylon)) | 4 | заказать |
| - | 51-1464 | FLATWASHER (FLATWASHER) | 4 | заказать |
| 8 | 91-8108 | BRACKET - frame (BRACKET - frame) | 1 | заказать |
| - | 51-1442 | SCREW - bracket (SCREW - bracket) | 5 | заказать |
| - | 51-1425 | NUT (NUT) | 3 | заказать |
| - | 55-9054 | WASHER (nylon) (WASHER (nylon)) | 5 | заказать |
| - | 51-1464 | FLATWASHER (FLATWASHER) | 5 | заказать |
| 9 | 92-891 | BRACKET - safety hook (BRACKET - safety hook) | 1 | заказать |
| - | 51-1443 | SCREW - bracket (SCREW - bracket) | 4 | заказать |
| - | 51-1430 | FLATWASHER (FLATWASHER) | 4 | заказать |
| - | 55-9541 | WASHER (nylon) (WASHER (nylon)) | 4 | заказать |
| 10 | 33-2983 | GASKET - unit (GASKET - unit) | 1 | заказать |
| 11 | 98-8243 | FRAME - condenser (FRAME - condenser) | 1 | заказать |
| 12 | 91-9754 | POCKET - sensor (POCKET - sensor) | 2 | заказать |
